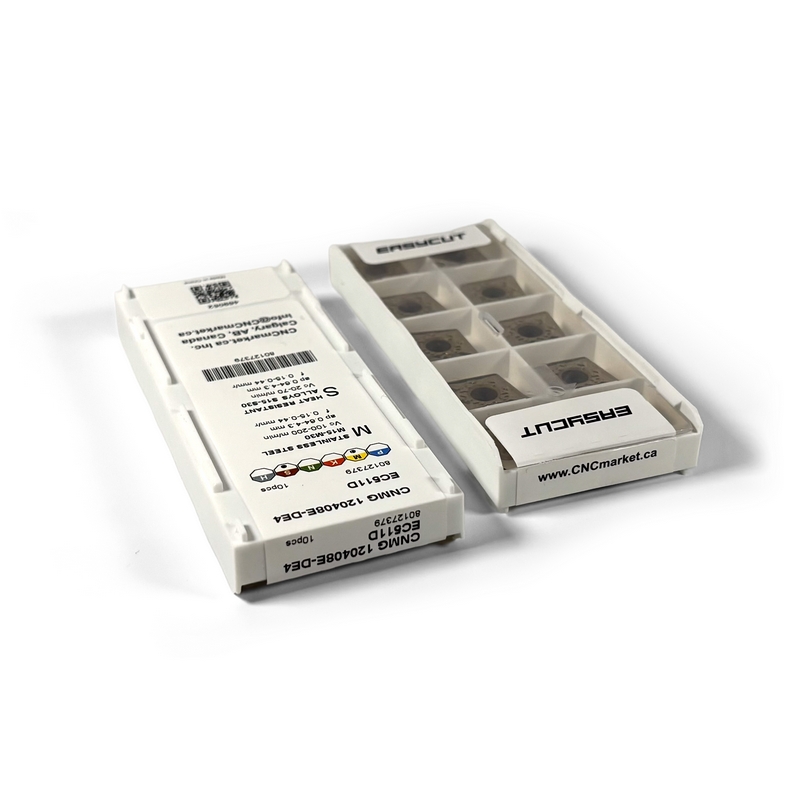

CNMG 120408 Carbide (CVD) Turning Insert, DE4 Medium Chip Breaker, EC511D Grade, for M Materials

In stock

CNMG 120408 Carbide (CVD) Turning Insert, DE4 Medium Chip Breaker, EC511D Grade, for M Materials

80127379In stock

CNMG 120408E-DE4 EC511D insert, 80° Rhombic, medium interrupted, RE 0.8mm (0.03"), free delivery across DACH

€7.16 incl. taxes

Retail price as of 09.13.2026

120 pcs.ab Lager Berlin (BE)

Product Attributes

Technical Description

Reviews

ISO code

CNMG 120408

Workpiece Material

M - Stainless Steel, P - Steel

Cutting Conditions

General-medium interrupted

Application

Medium

Nose Radius (RE), mm

0.8

Insert Shape

80° Rhombic

Side Clearance

Negative

Insert Material

Carbide (CVD)

Chipbreaker

DE4

Easycut Series

ANSI code

Technical Description

Recommended Cutting Data

The EC511D grade is primarily designed for stainless steel turning and can also be used for heat-resistant alloys. The following values should be used as a starting point and adjusted according to machine stability, tooling setup, coolant conditions, and workpiece material.

Stainless Steel (ISO M15-M30)

Cutting speed (Vc): 100-200 m/min
Depth of cut (ap): 0.64-4.3 mm
Feed rate (f): 0.15-0.44 mm/rev

Heat-Resistant Alloys (ISO S15-S30)

Cutting speed (Vc): 20-70 m/min
Depth of cut (ap): 0.64-4.3 mm
Feed rate (f): 0.15-0.44 mm/rev
