EASYCUT EASYMIX Coolant Mixing Unit 0–25 %, for Drum Mounting

Running out of stock

EASYCUT EASYMIX Coolant Mixing Unit 0–25 %, for Drum Mounting

EASYMIX_01Running out of stock

Coolant mixing unit for water-miscible fluids, concentration range 0–25 %. Mounts directly on a drum with G2" thread or on an IBC with the adapter; runs on mains water pressure of 2–6 bar using the venturi principle, up to 1200 l/h. The same concentration on every batch, without operator influence.

€550.97 incl. taxes

Retail price as of 09.13.2026

4 pcs.ab Lager Berlin (BE)

Technical Description

Reviews

A mixing unit that runs on water pressure alone

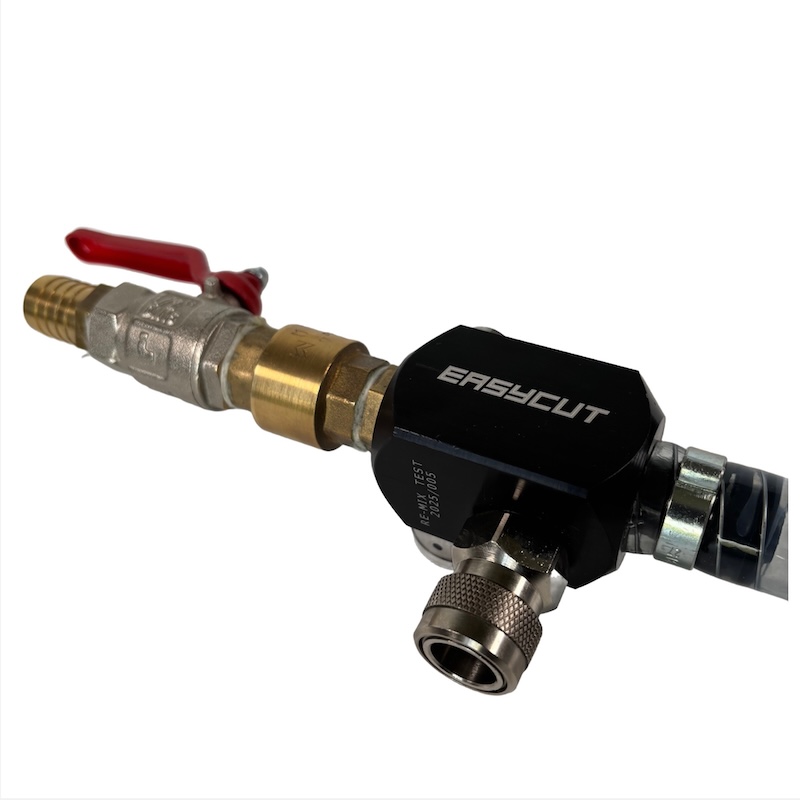

EASYMIX is a coolant mixing unit for water-miscible metalworking fluids. It mounts straight onto the container of concentrate and needs no power: when the water is turned on, the flow creates a venturi effect that draws concentrate in and blends it with water inside the unit. The finished emulsion goes through the outlet hose into the machine tank or a storage vessel.

That is the whole idea — the concentration is set once on the unit and then repeats itself on every batch, instead of depending on who is doing the mixing and how carefully.

Will it run on your water supply?

This is the question to settle first, and it has a number: 2 to 6 bar inlet pressure. Most workshop mains supplies are inside that range, but a long run of small-bore pipe or a shared line under load can drop below it. The unit has an integrated pressure gauge on the water inlet so you can see what you are actually getting rather than what the building drawing says.

Output is up to 1200 l/h, depending on that pressure. In practice that means a 200-litre machine tank fills in around ten minutes at full flow — filling a tank stops being a job you plan around.

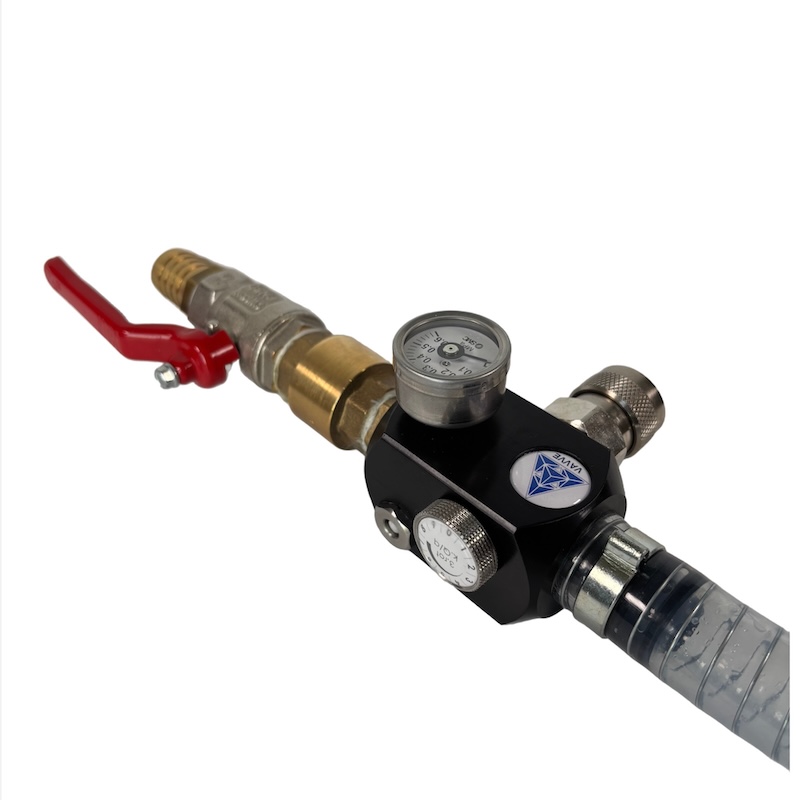

Integrated pressure gauge on the water inlet

What it mounts on

Directly onto a standard steel drum with a G2" thread — that is the 208-litre drum of every EASYCUT coolant. The telescopic suction tube adjusts so the same unit also works on a canister.

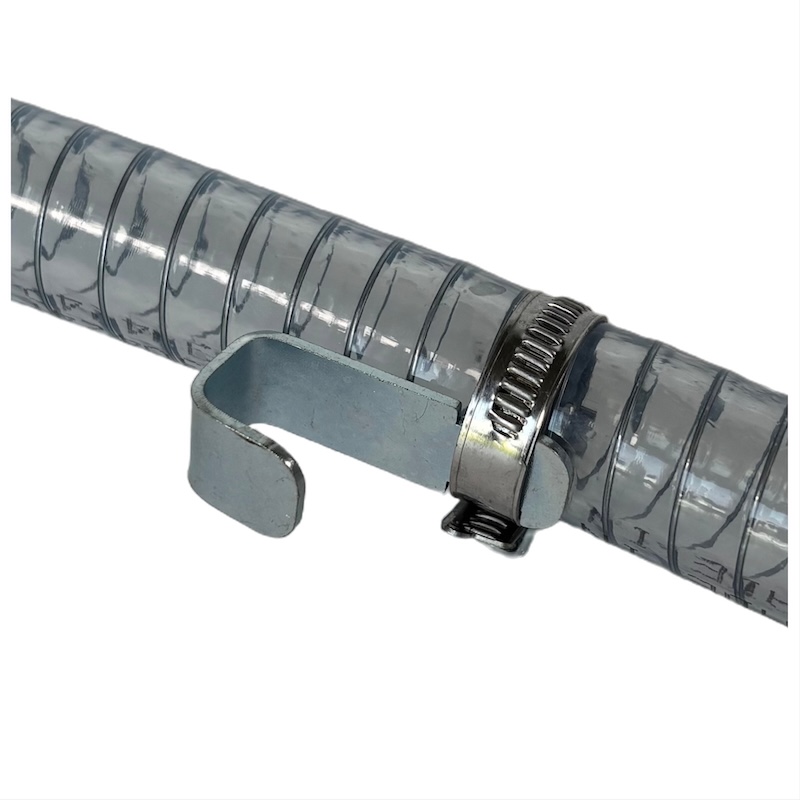

For a 1000-litre IBC the frame and outlet are a different fitting, so the IBC adapter with bracket is needed — bracket, reinforced suction hose and adapter cap with ball valve.

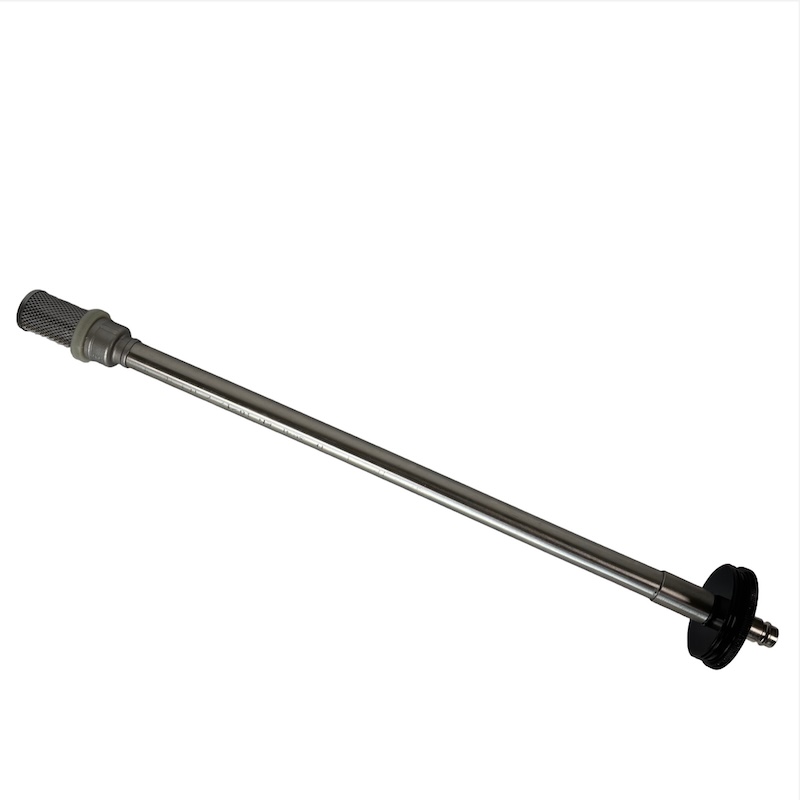

Telescopic suction tube for drums and canisters

What is built in

Most of the engineering here is about things not going the wrong way:

Check valve on the water inlet — nothing can flow back from the unit into the water line.
Check valve on the suction tube — concentrate cannot run back into its own container.
Suction filter on the concentrate inlet, so what reaches the mixing chamber is clean.
Outlet hose ventilation after mixing, so the hose does not stay full and drip.
Anodised aluminium alloy and stainless steel throughout — the wetted parts sit in coolant concentrate for years.

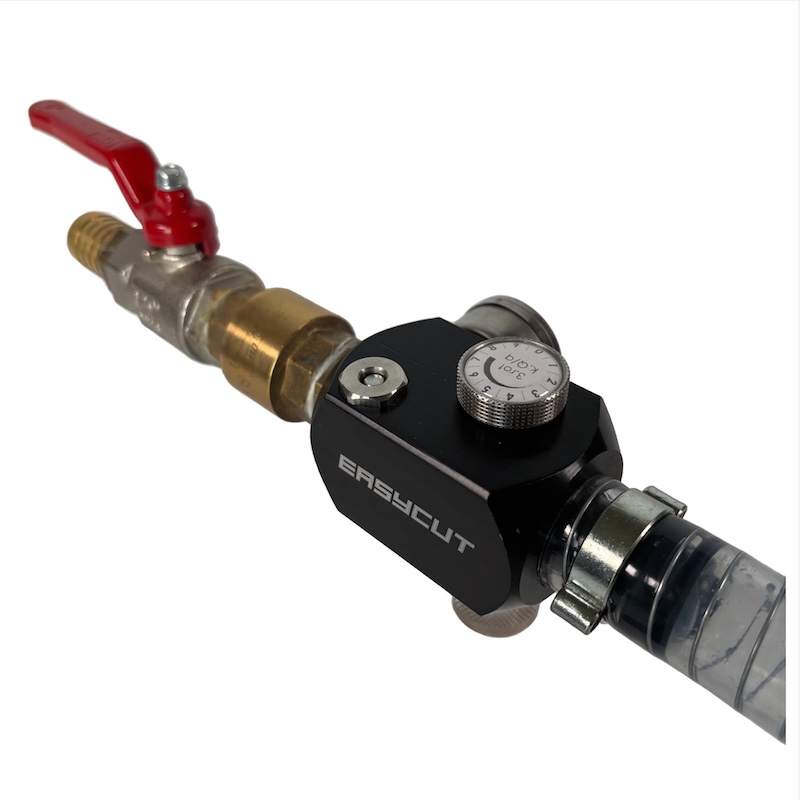

Adjustable concentration setting for different machining requirements

Why mix by machine rather than by hand

Emulsion mixed by hand varies — in exactly the figure that matters. Too thin means corrosion and short sump life; too rich means foam, residue on parts and skin exposure, plus concentrate poured away for nothing. The variation is not carelessness, it is what happens when a bucket, a hose and a busy shift are involved.

Reviews

You must be logged in to leave a review.

Frequently bought together

EASYCUT IBC Adapter with Bracket for EASYMIX

€83.30 incl. taxes

IBCbracketRunning out of stock

EASYCUT IBC Adapter with Bracket for EASYMIX

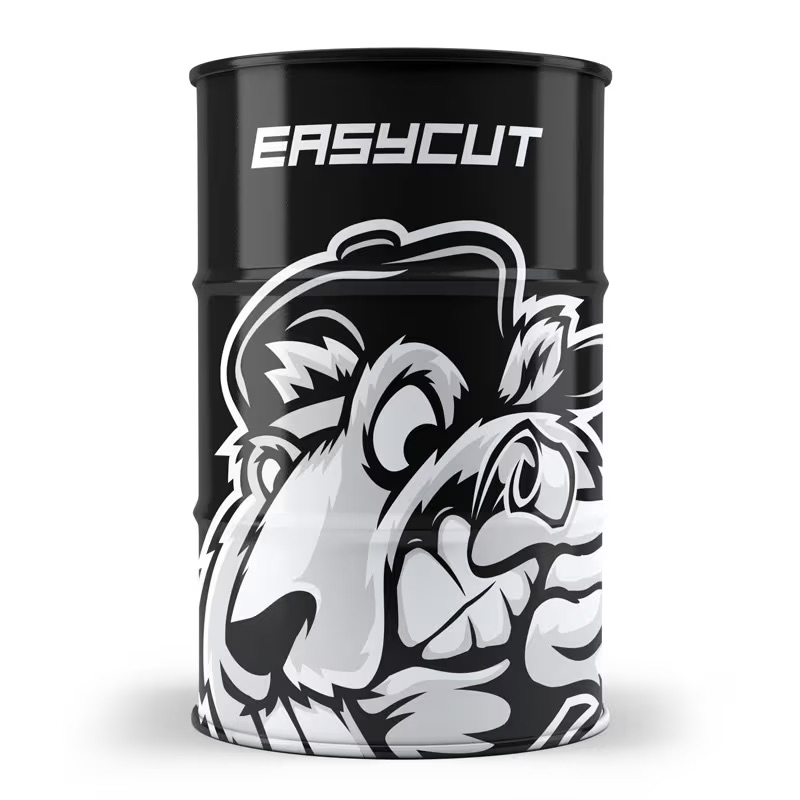

EASYCUT PRO302 Metalworking Coolant for Aluminium and All Materials, 208 l Drum

€1,631.35 incl. taxes

PRO302-55Running out of stock

EASYCUT PRO302 Metalworking Coolant for Aluminium and All Materials, 208 l Drum

EASYCUT Hand Refractometer for Metalworking Coolant, Brix 0–20 %, 0.1 Graduation

€23.80 incl. taxes

LQ20TMade to order

EASYCUT Hand Refractometer for Metalworking Coolant, Brix 0–20 %, 0.1 Graduation

A mixing unit that runs on water pressure alone

That is the whole idea — the concentration is set once on the unit and then repeats itself on every batch, instead of depending on who is doing the mixing and how carefully.

Will it run on your water supply?

Integrated pressure gauge on the water inlet

What it mounts on

Directly onto a standard steel drum with a G2" thread — that is the 208-litre drum of every EASYCUT coolant. The telescopic suction tube adjusts so the same unit also works on a canister.

For a 1000-litre IBC the frame and outlet are a different fitting, so the IBC adapter with bracket is needed — bracket, reinforced suction hose and adapter cap with ball valve.

Telescopic suction tube for drums and canisters

What is built in

Most of the engineering here is about things not going the wrong way:

Check valve on the water inlet — nothing can flow back from the unit into the water line.

Check valve on the suction tube — concentrate cannot run back into its own container.

Suction filter on the concentrate inlet, so what reaches the mixing chamber is clean.

Outlet hose ventilation after mixing, so the hose does not stay full and drip.

Anodised aluminium alloy and stainless steel throughout — the wetted parts sit in coolant concentrate for years.

Adjustable concentration setting for different machining requirements

Why mix by machine rather than by hand

Type	Coolant mixing unit / mixing valve, venturi principle
Application	Mixing water with water-miscible coolant concentrate
Water inlet pressure	2–6 bar
Concentration range	0–25 %, adjustable
Maximum output	up to 1200 l/h, depending on water pressure
Mounting	Standard steel drums with G2" thread; IBC containers with adapter
Materials	Anodised aluminium alloy, stainless steel components
Origin	Made in the EU
